Soho Lighting

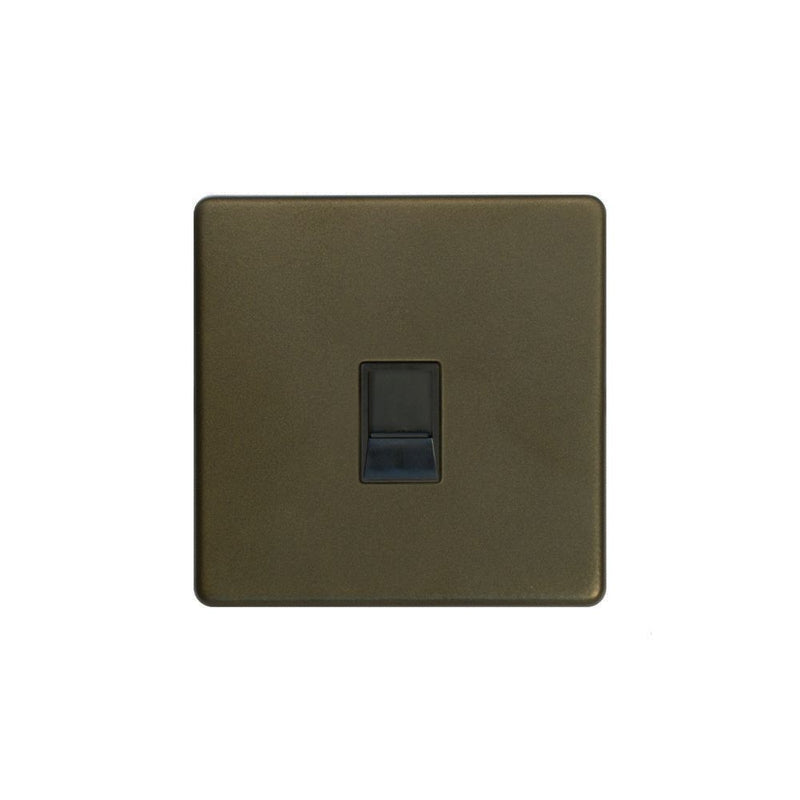

1G Data Socket RJ45 Cat5 w/ Black Insert
Product of the UK
| Standard(s) | BS 5733 (Where Applicable) |
| Mounting Box Depth (Min) | 35mm |
| Earth Terminal Capacity 1, 2, 3, 4, 5 | 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm², 1 x 4.0mm² (Earth) |
| Fixing Centres | 60.3mm |
| Size | 86mm x 86mm x 4.5mm (Plate thickness) |
| Product Class 1 | Face plate must be earthed |
| Ambient Operating Temperature | -5° to +40°C |
| Recommended Location | Internal Use Only |
| Maximum Installation Altitude | 2000m |
| IP Rating | IP2XD |
