Soho Lighting

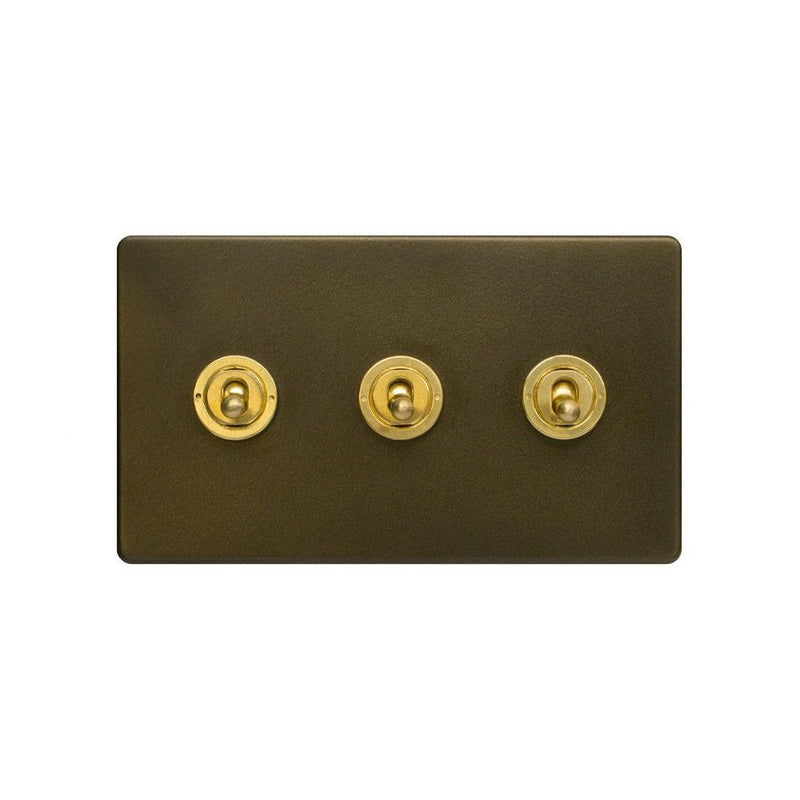

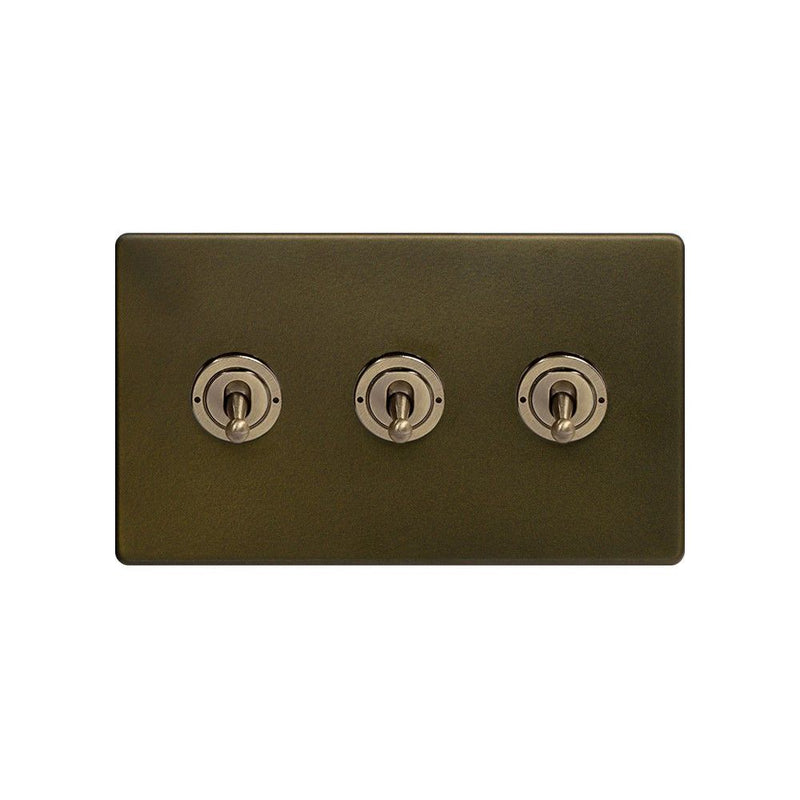

3G Intermediate Toggle Switch
Product of the UK
| Standard(s) | BS EN 60669-1 |
| Voltage Rating |
20 Amp, 250V~ (20AX – no derating for inductive or fluorescent loads) |
| Contact Gap | Normal Gap |
| Mounting Box Depth (Min) | 35mm |
| Terminal Capacity | 3 x 2.5mm², 2 x 4.0mm², 1x 6.0mm² |
| Earth Terminal Capacity | 3 x 2.5mm², 2 x 4.0mm², 1x 6.0mm² |
| Fixing Centers | 120.6mm |
| Size | 86mm x 146mm x 4.5mm (Plate thickness) |
| Product Class 1 | Face plate must be earthed |
| Ambient Operating Temperature | -5° to +40°C |
| Recommended Location | Internal Use Only |
| Maximum Installation Altitude | 2000m |
| IP Rating | IP2XD |
| Switched Poles | Single |
| Main Frequency | 50hz - 60hz |
| Contact Gap Minimum | 3mm |
